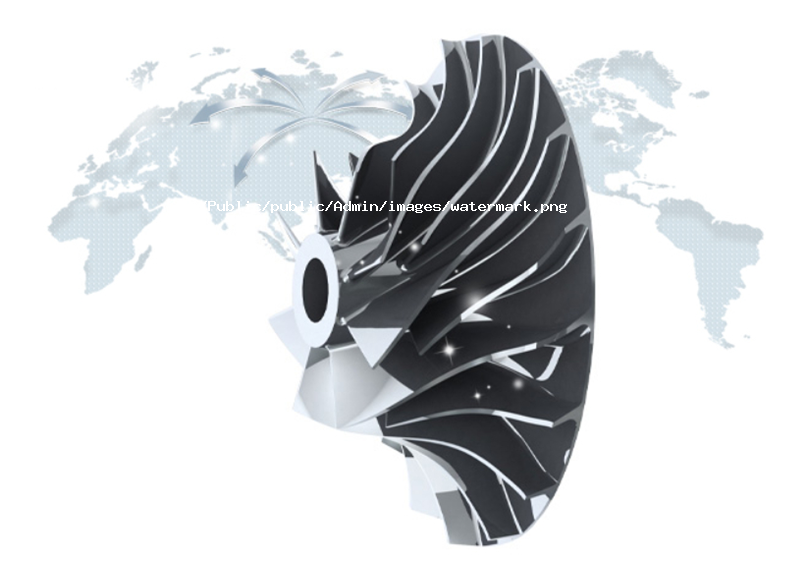

Casted Stainless 630 Impeller

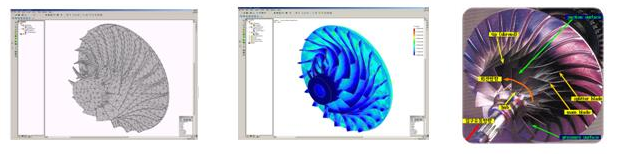

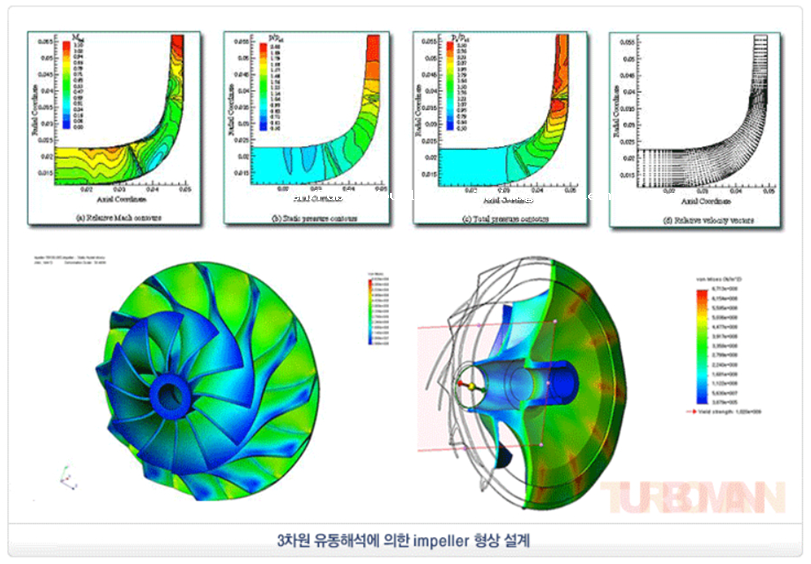

Design of High Strength Stainless Steel 630 Impeller Based on Three-Dimensional Flow Analysis

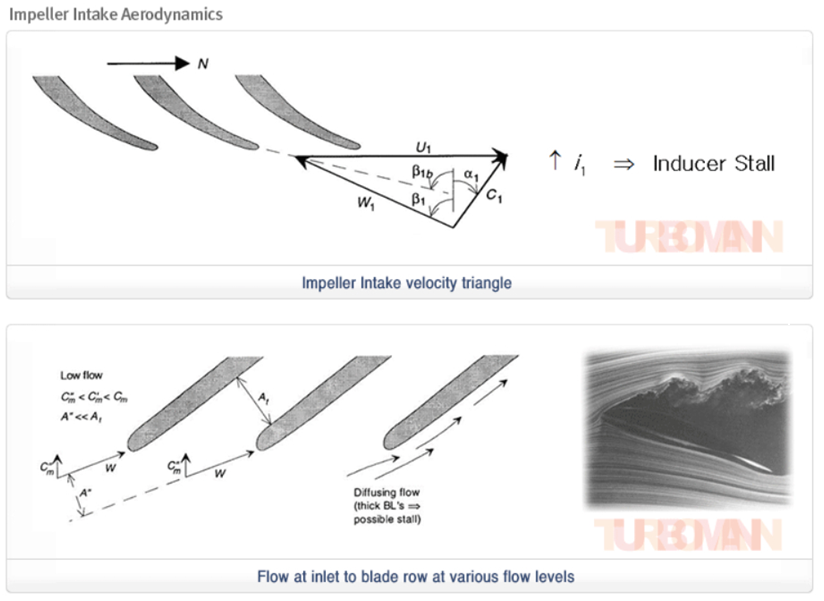

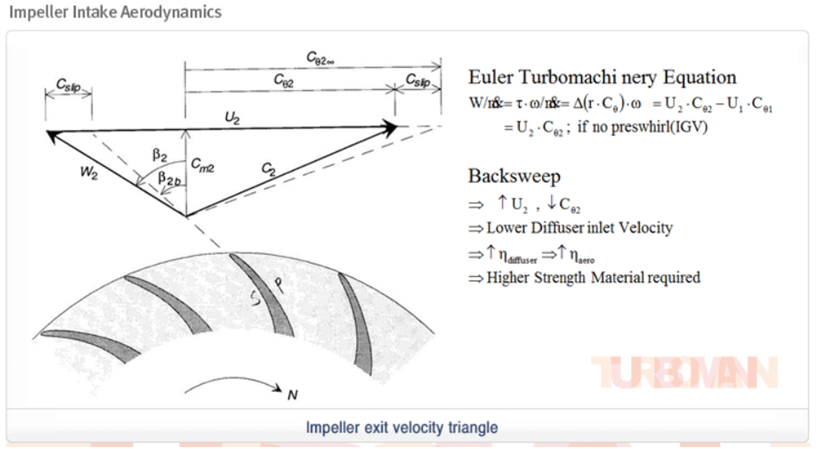

Aerodynamics of High Strength Stainless Steel 630 Impeller

Characteristics of High Strength Stainless Steel 630 Impeller

Description of High Strength Stainless Steel

Ø The efficiency of impeller can reach 92%, and the compression efficiency of blower (including volute, impeller and diffuser) can reach 84%. When the working condition changes, the    efficiency of blower decreases very little, about 1% ~ 2%;

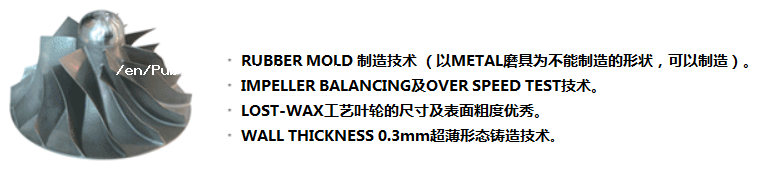

Ø Manufacturing process: Lost-wax casting method is adopted;

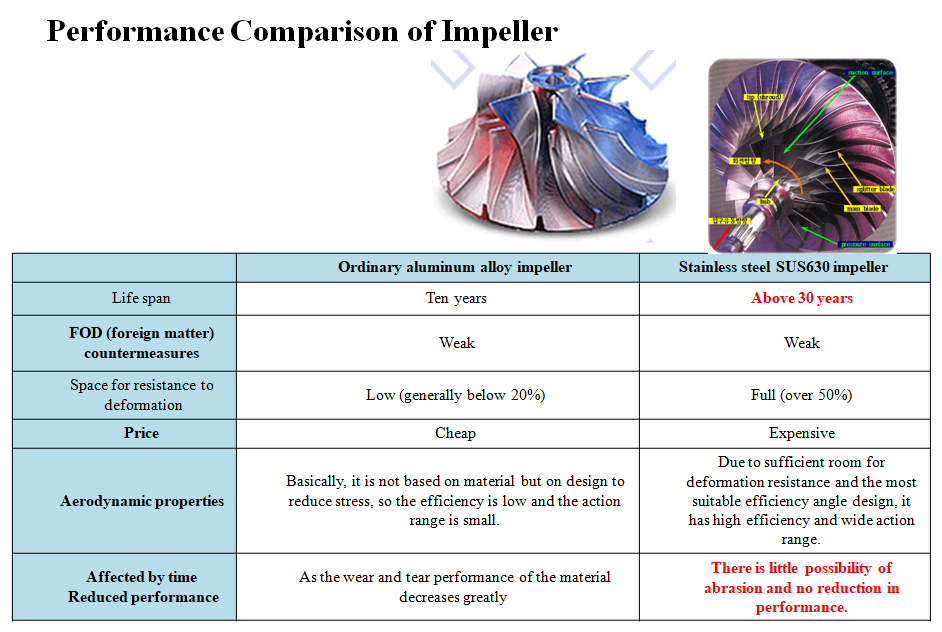

Ø Material: High strength stainless steel impeller (SUS630) has excellent wear resistance and deformation resistance, high strength, strong corrosion resistance and good cast-ability.

Ø Connection form: direct connection between impeller and motor, high efficiency;

Ø The service life of the impeller reaches more than 30 years;
